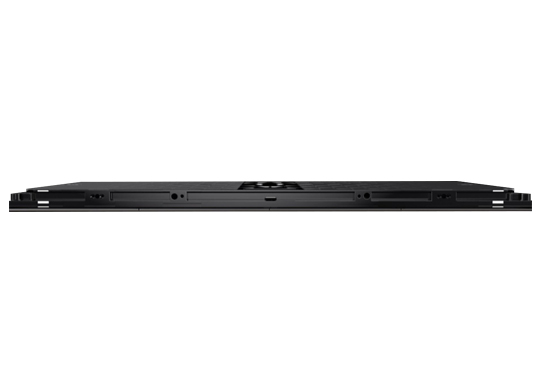

Redefining Ultrathin Fine Pitch—29.5mm

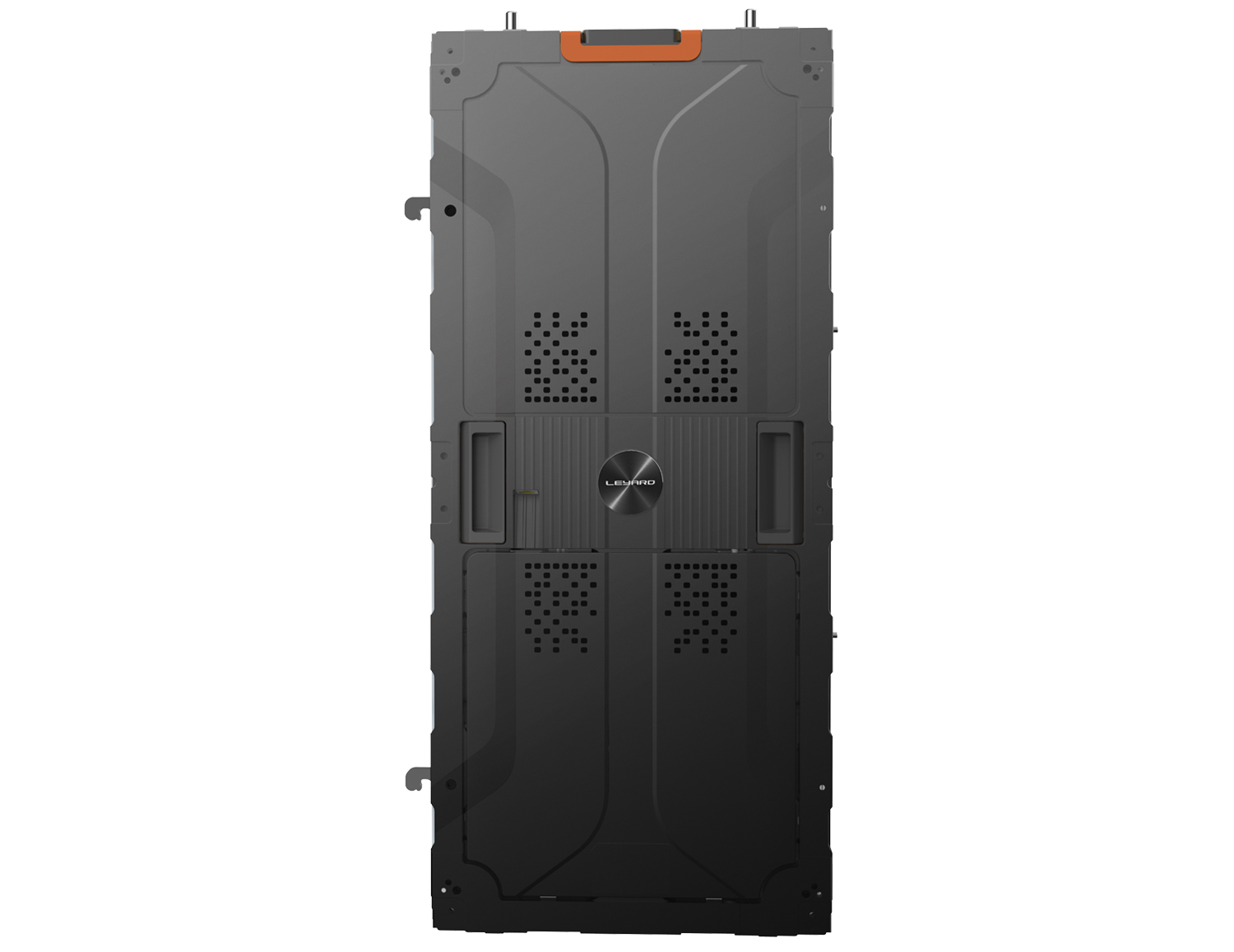

Using simple geometric lines as the basic design element, reflecting the rhythm of the array without losing details.
Unique 6-axis alignment features ensure the video wall is perfectly aligned and seamless
Module, power, HUB board front maintenance, rapid disassembly and assembly.
Four cabinets combined into 55 inches
DC 53.5V power input and the output is 4V
Integrated Cableless Connector
Sell with AC-DC Distribution box

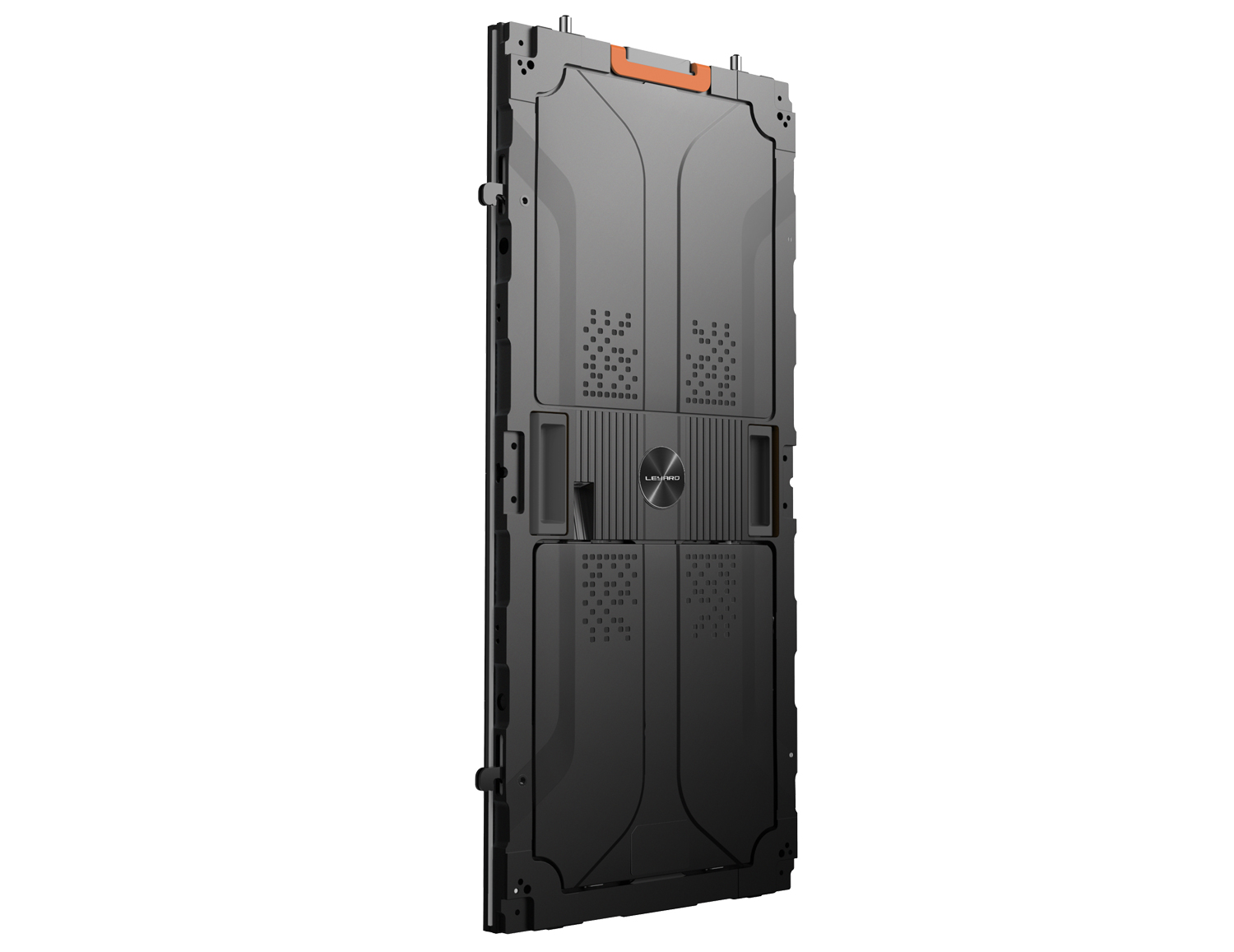

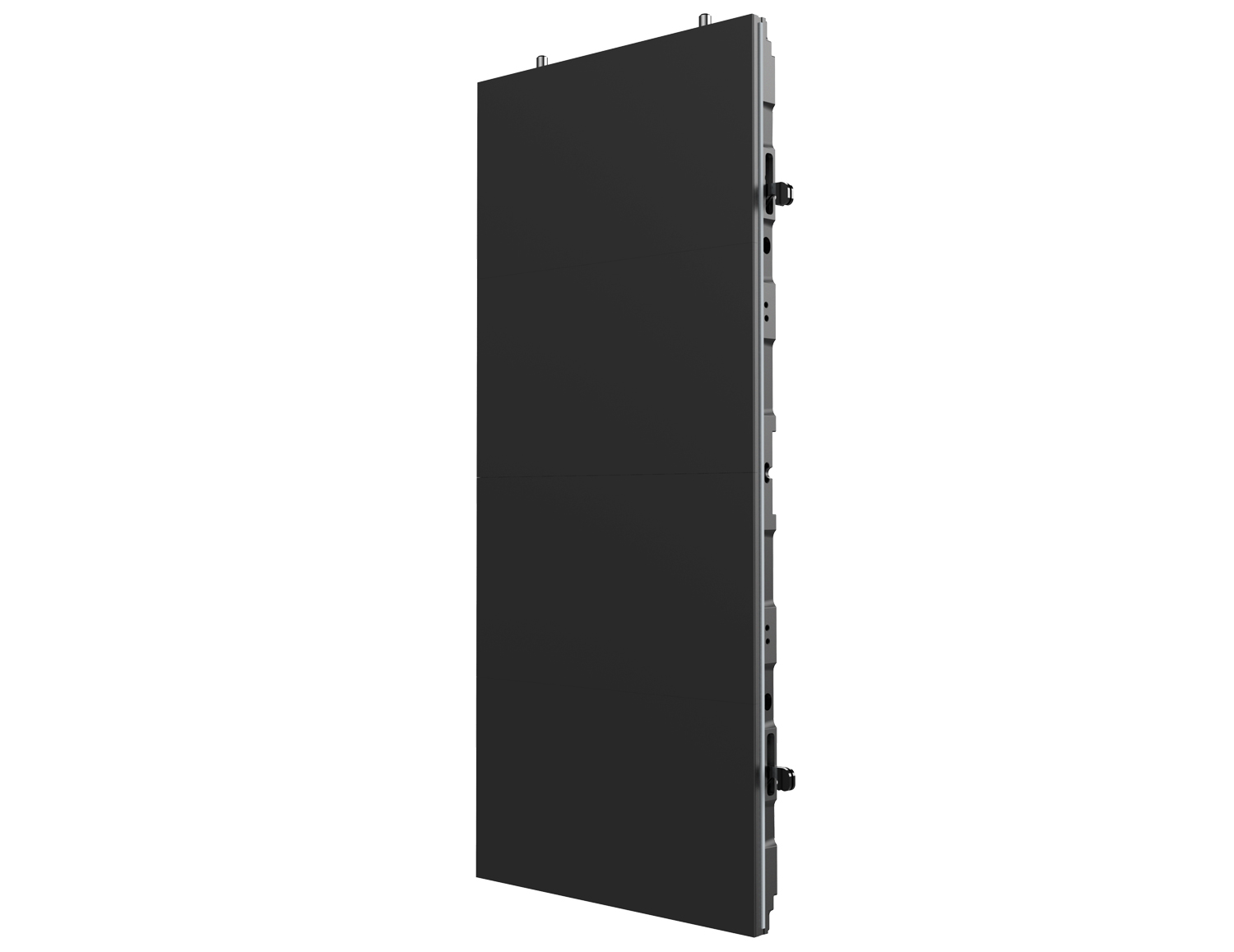

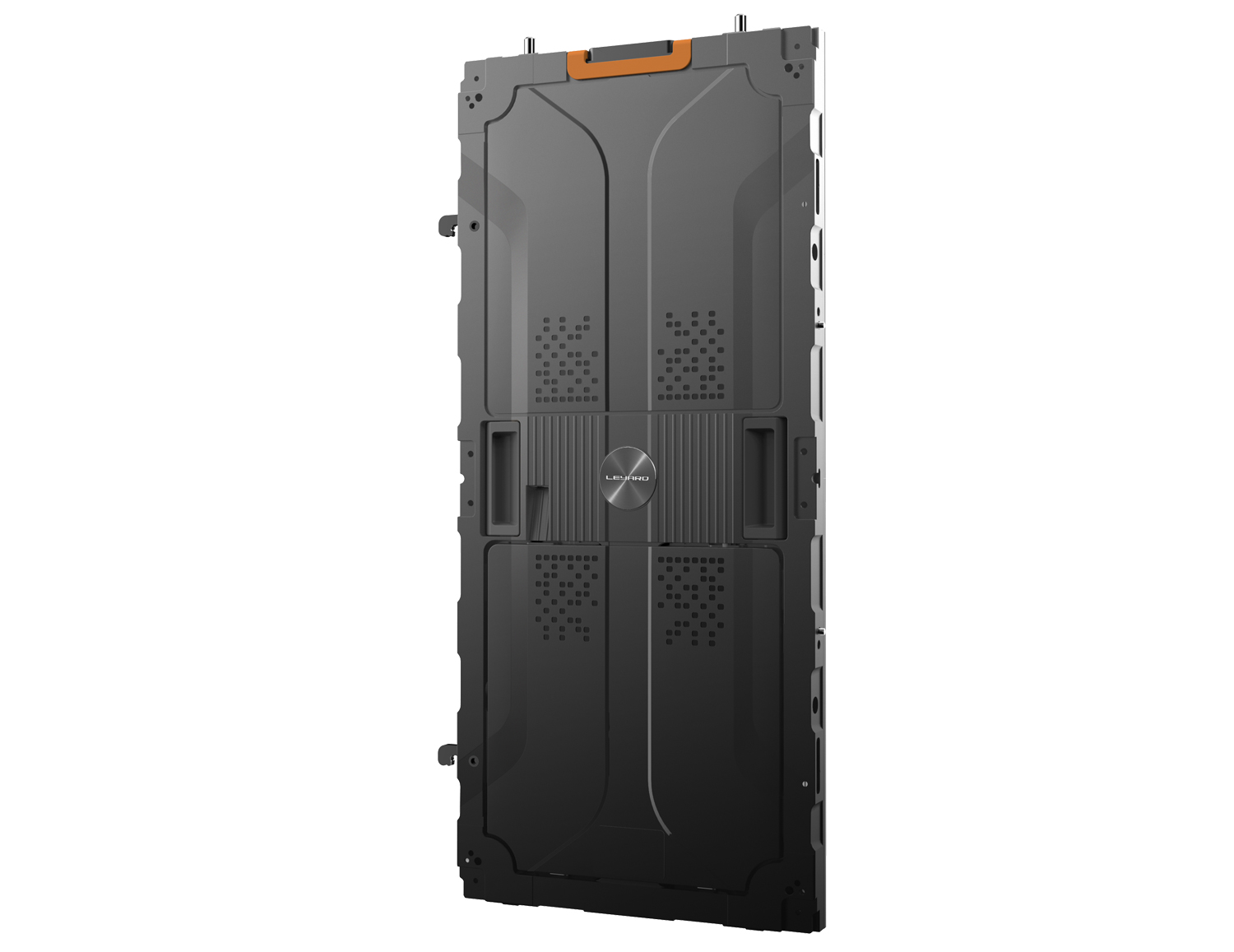

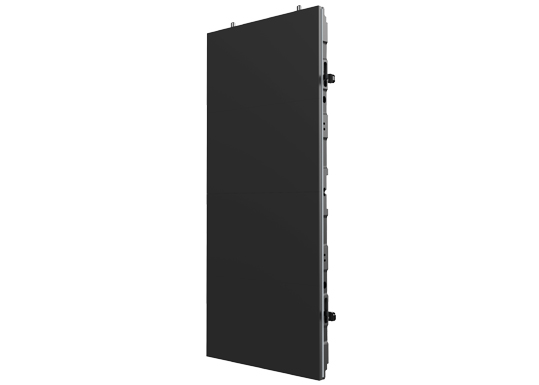

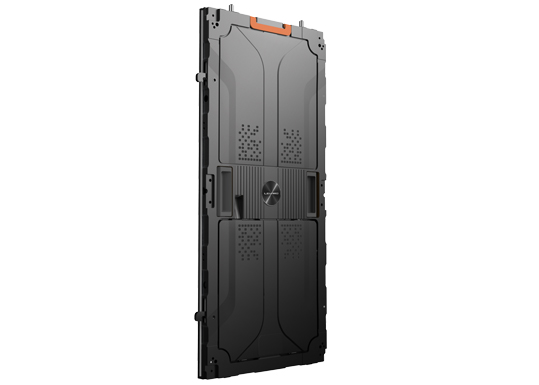

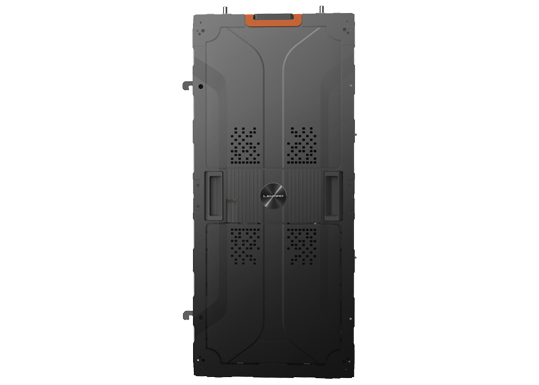

leyard AT SERIES ULTRA-THIN COMMERCIAL LED DISPLAY
Product Specification
Item | AT009 | AT011 | AT012 | AT014 | AT015 | AT018 | AT025 | AT040 |
Pixel Configuration | SMD | SMD | SMD | SMD | SMD | SMD | SMD | SMD |
Pitch(mm) | 0.945 | 1.18 | 1.26 | 1.454 | 1.575 | 1.89 | 2.5 | 4 |
Module Resolution(WxH) | 320x180 | 256x144 | 240x135 | 208x117 | 192x108 | 160x90 | 120x68 | 75x42 |
Module Size(mm)(WxH) | 302.4x170.1 | |||||||
Module Weight(Kg) | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 |
Module Composition(WxH) | 1x4 | 1x4 | 1x4 | 1x4 | 1x4 | 1x4 | 1x4 | 1x4 |
Panel Resolution | 320x720 | 256x576 | 240x540 | 208x468 | 192x432 | 160x360 | 120x272 | 75x168 |
Panel Dimension(WxHxD, mm) | 302.4x680.4x29.5 | |||||||
Unit Area(㎡) | 0.2058 | 0.2058 | 0.2058 | 0.2058 | 0.2058 | 0.2058 | 0.2058 | 0.2058 |
Panel Weight(Kg/㎡) | 27 | 27 | 27 | 27 | 27 | 27 | 27 | 27 |
Pixel Density(pixel/㎡) | 1119789 | 718184 | 629882 | 473111 | 403124 | 279947 | 158637 | 61256 |
Surface Flatness (mm) | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
Brightness Calibration | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Color Calibration | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Brightness(nits) (after calibration) | 600~800 | 600~800 | 600~800 | 600~800 | 600~800 | 600~800 | 600~800 | 600~800 |
Color Temperature(K) | 3000-10000 Adjustable | |||||||
Horizontal Viewing Angle(°) | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 |
Vertical Viewing Angle(°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
Deviation of LED Luminance Center (after calibration) | ＜3% | ＜3% | ＜3% | ＜3% | ＜3% | ＜3% | ＜3% | ＜3% |
Brightness Uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% |
Chromaticity Uniformity (after correction) | ±0.003Cx,Cy within | |||||||
Max Power Consumption (W/㎡) | 650 | 650 | 620 | 620 | 600 | 600 | 600 | 600 |
Average Power Consumption (W/㎡) | 217 | 217 | 208 | 208 | 200 | 200 | 200 | 200 |
Power Supply | DC53.5V(48V~58V) | |||||||
Drive Mode | Constant Current | |||||||
Frame Rate(Hz) | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 |
Refresh Rate(Hz) | 3000/3840 | |||||||
Lifetime(hrs) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
Operation Temperature (℃) | -10~40 | -10~40 | -10~40 | -10~40 | -10~40 | -10~40 | -10~40 | -10~40 |
Storage Temperature(℃) | -20~60 | -20~60 | -20~60 | -20~60 | -20~60 | -20~60 | -20~60 | -20~60 |
Operation Humidity(RH) | 10--80% no condensation | |||||||
Storage Humidity(RH) | 10--85% no condensation | |||||||
Certificates | CCC/CE/FCC/CB/cTUVus | |||||||
