Stackable Front and Rear Access LED Video Walls

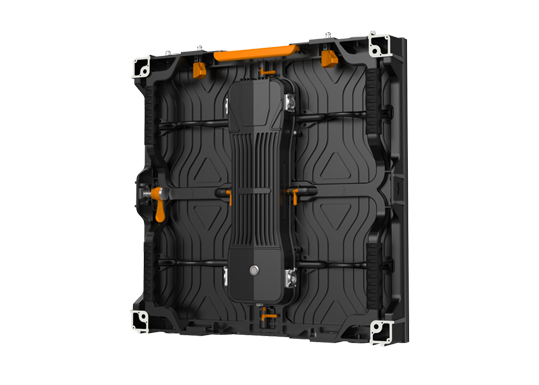

Integrated and die-casting cabinet, solid and reliable. The cabinet is equipped with fast assembly connection which can make screen disassembled fastly. Meanwhile, it is designed with automatic alignment mechanism which can realize fast installation by single person.
Fully enclosed module design, the body of the box is made of magnesium alloy
The cabinet comes with a quick-fit connection lock for quick disassembly and assembly, hoisting and leasing
The module is screw-free and assembled by self-locking quick-loading mechanism, which is convenient and quick to maintain
The upper and lower sides of the cabinet are designed with a magnetic aligning mechanism for quick installation by one person
leyard VVRO Series Rental LED Display
Module adopts digital signature technology and can store brightness, color calibration data independently
VVRO Series
Item | VVRO2.9-Plus | VVRO3.9-Plus | VVRO4.8-Plus | VVRO5.9-Plus | VVRO6.9-Plus | VVRO7.8-Plus | VVRO8.3-Plus | VVRO10.4-Plus |
LED Configuration | SMD | SMD | SMD | SMD | SMD | SMD | SMD | SMD |
Pixel Pitch (mm) | 2.97 | 3.91 | 4.81 | 5.95 | 6.94 | 7.81 | 8.33 | 10.42 |
Module resolution (WxH) | 84x84 | 64x64 | 52x52 | 42x42 | 36×36 | 32×32 | 30×30 | 24×24 |
Module dimension (WxHxD, mm) | 250x250x17 | 250x250x17 | 250x250x17 | 250x250x17 | 250x250x18 | 250x250x18 | 250x250x18 | 250x250x18 |
Module Weight (kg) | 0.62 | 0.62 | 0.62 | 0.62 | 0.62 | 0.62 | 0.62 | 0.62 |
Maintenance Method | Rear Installation, Front Dis-assembly | Front Dis-assembly | ||||||
Module Composition (WxH) | 2x2 | 2x2 | 2x2 | 2x2 | 2x2 | 2x2 | 2x2 | 2x2 |
Cabinet Resolution (WxH) | 168x168 | 128x128 | 104x104 | 84x84 | 72x72 | 64x64 | 60x60 | 48x48 |
Cabinet Dimension (WxHxD, mm) | 500x500x75 | 500x500x76 | 500x500x77 | 500x500x77 | 500x500x77 | 500x500x77 | 500x500x77 | 500x500x77 |
Cabinet Area (㎡) | 0.25 | |||||||
Cabinet Weight (kg/㎡) | 30(single power supply) / 32(dual power supply) | |||||||
Pixel Density (Point/㎡) | 112896 | 65536 | 43264 | 28224 | 20736 | 16384 | 14400 | 9216 |
Surface Flatness(mm) | ≤0.5 | |||||||
Brightness Calibration | Yes | |||||||
Color Calibration | Yes | |||||||
Brightness (nits) | 4000(5000 optional) | 4500(5500 optional) | 5000(7000 optional) | |||||
Color Temperature (K) | 3000~10000 Adjustable | |||||||
Viewing Angle (H/V) ° | 150/120 | |||||||
Deviation of LED Luminance Center (after calibration) | <3% | |||||||
Brightness Uniformity (after calibration) | ≥97% | |||||||
Chromatic Uniformity (after calibration) | ±0.003Cx, Cy within | |||||||
Contrast ratio | 5000:1 | |||||||
Max Power Consumption (W/㎡) Standard | 640 | 640 | 600 | 600 | 600 | 600 | 600 | 600 |
Avg Power Consumption (W/㎡) Standard | 250 | 245 | 220 | 215 | 210 | 210 | 205 | 205 |
Input Voltage (V) | AC100~240(50-60Hz) | |||||||
Drive Mode | Constant Current Drive | |||||||
Refresh Rate @60Hz | 3840 | |||||||
IP Level | IP65 | |||||||
Frame rate Processing (Hz) | 50&60 | |||||||
Lifetime (hrs) | 100,000 | |||||||
Operating Temperature (℃) | -40~50 | |||||||
Storage Temperature (℃) | -40~60 | |||||||
Operating Humidity (RH) | 10~80% | |||||||
Storage Humidity (RH) | 10~85% | |||||||
