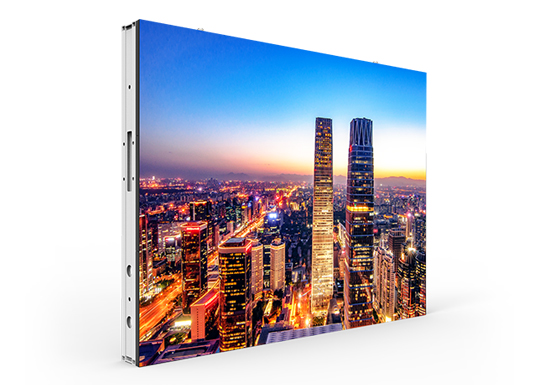

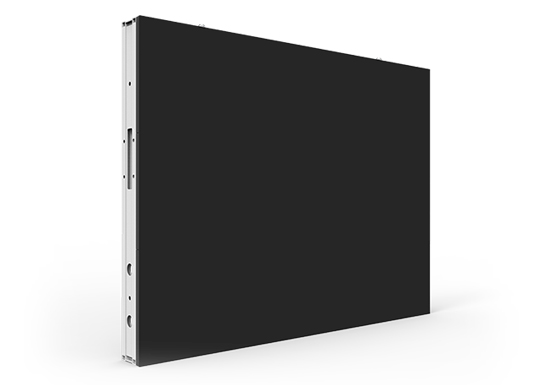

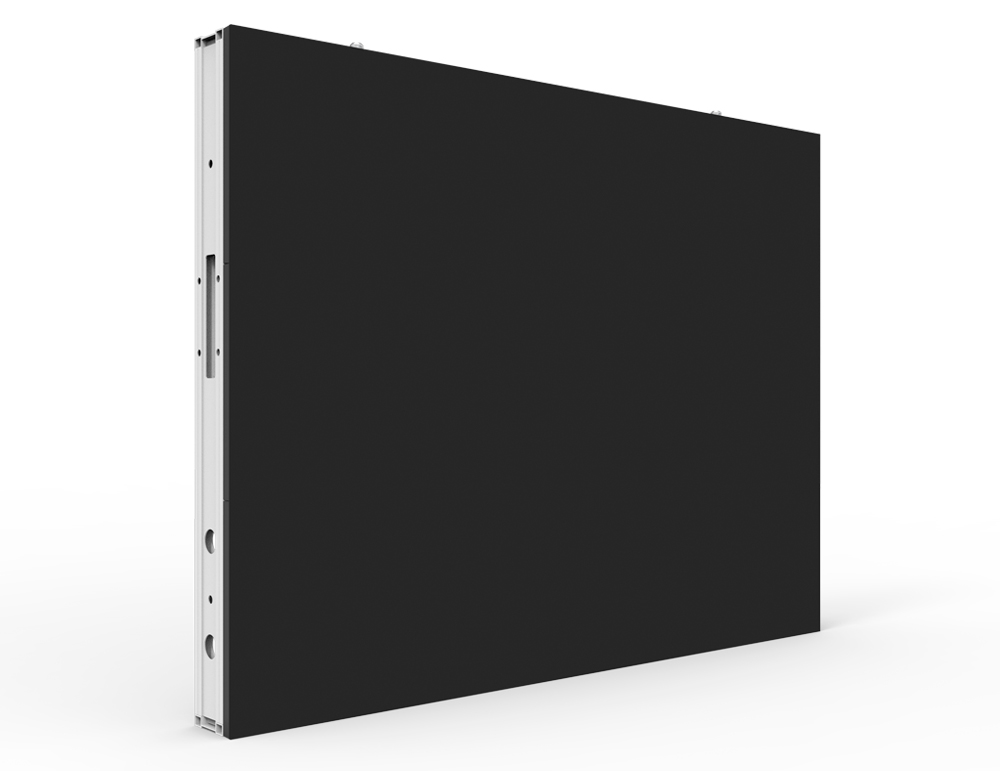

NCV Fixed Outdoor LED Display
Brightness can fully meet the needs of outdoor display, standard 6000 nits and high brightness 8000 nits optional

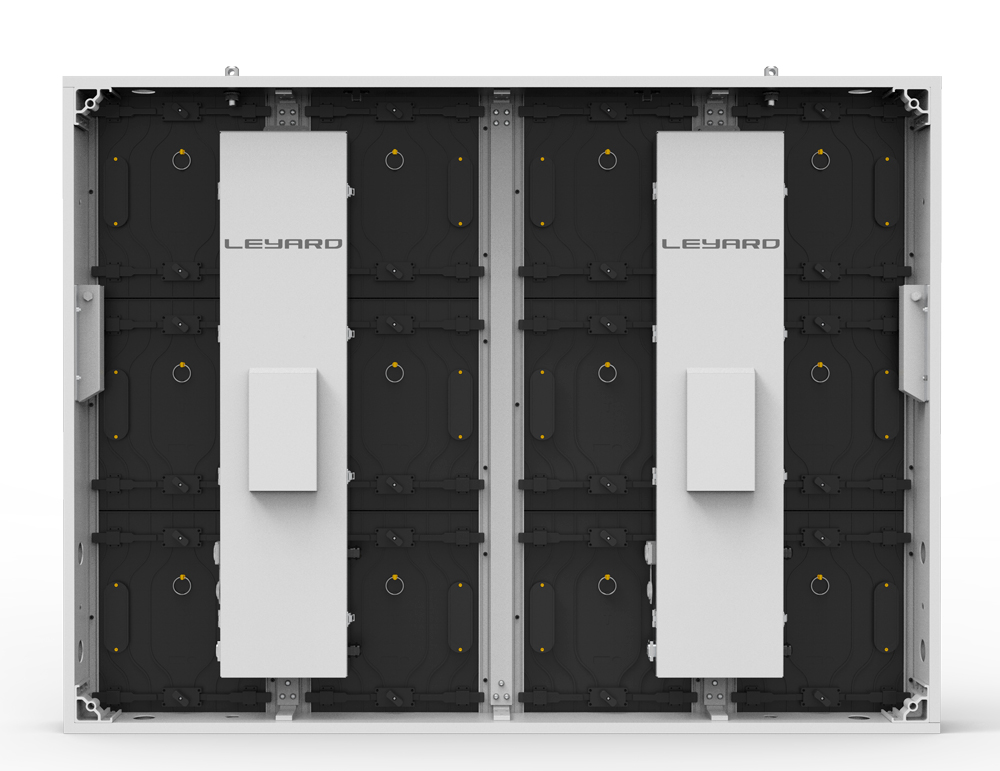

All-aluminum cabinet, efficient heat dissipation
Less than 30kg/㎡ allows in shipping cost and installation cost

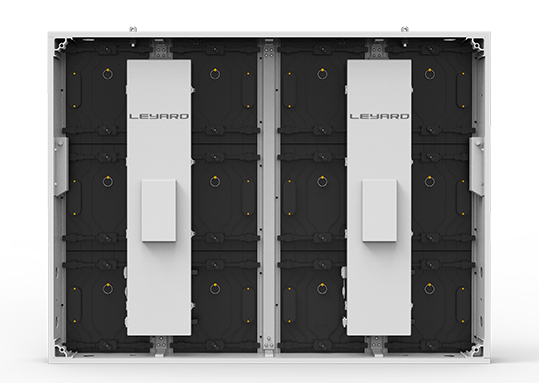

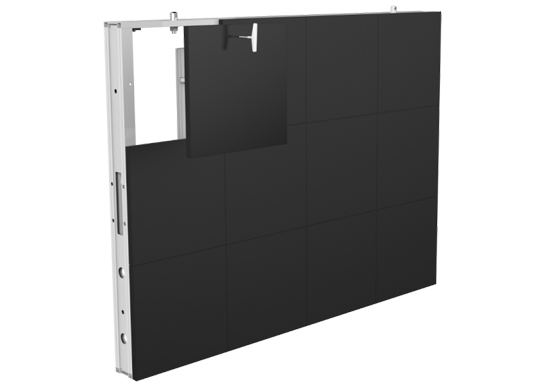

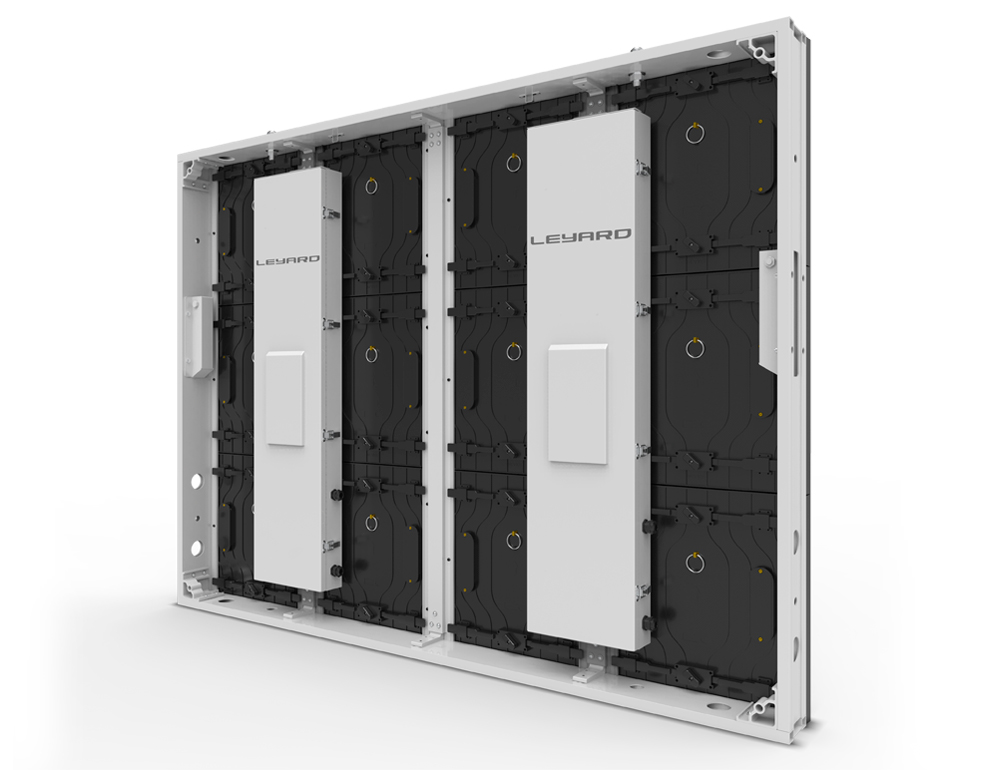

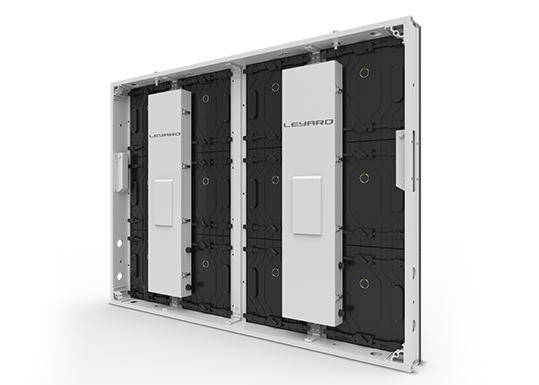

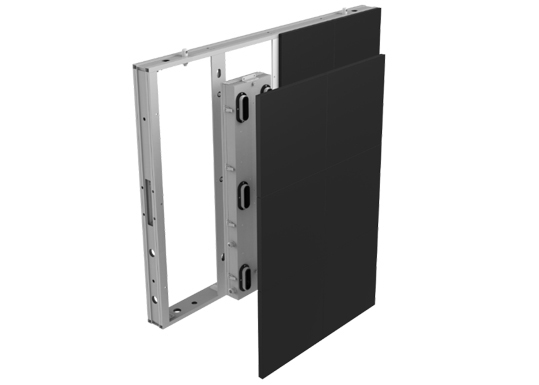

Modular Design, commonly waterproof module, module power box can be replaced independently, cabinet IP65 front & rear

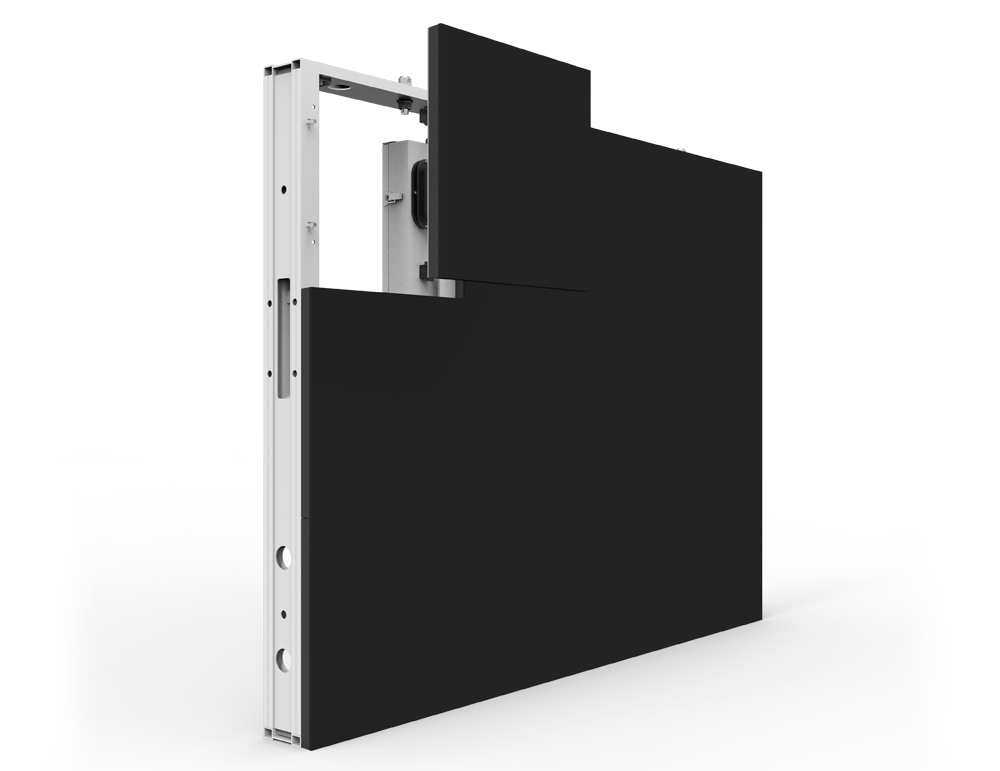

Versatile outdoor LED display, front and rear maintenance
CE, CB, FCC, cTUVus passed
leyard NCV Outdoor FIXED LED DISPLAY
Product Specification
Item |
NCV04S |
NCV05S |
NCV06S |
NCV06S-HB |
NCV08S |
NCV08S-HB |
NCV10S |
NCV10S-HB |
NCV10A |
LED configuration |
SMD |
SMD |
SMD |
SMD |
SMD |
SMD |
SMD |
SMD |
DIP |
Physical pixel pitch (mm) |
4 |
5 |
6.67 |
6.67 |
8 |
8 |
10 |
10 |
10 |
Module resolution (WxH) |
80x80 |
64x64 |
48x48 |
48x48 |
40x40 |
40x40 |
32x32 |
32x32 |
32x32 |
Module dimension (WxH, mm) |
320x320 |
320x320 | |||||||
Module composition (WxH) |
4x3 |
4x3 | |||||||
Cabinet resolution (WxH) |
320x240 |
256x192 |
192x144 |
192x144 |
160x120 |
160x120 |
128x96 |
128x96 |
128x96 |
Cabinet dimension (WxHxD, mm) |
1280x960x102
* |
1280x960x108* | |||||||
Cabinet area (㎡) |
1.2288 |
1.2288 | |||||||
Weight (kg/cabinet; kg/㎡) |
36; 29 |
43; 35 | |||||||
Pixel density (Point/㎡) |
62500 |
40000 |
22500 |
22500 |
15625 |
15625 |
10000 |
10000 |
10000 |
IP level (Front/Rear) |
IP65 |
IP65 | |||||||
Brightness (nits) |
5500 |
6000 |
6000 |
8000 |
6000 |
8000 |
6000 |
8000 |
10000 |
Color temperature (K) |
3000—10000 |
3000
—
10000 | |||||||
Viewing angle (horiz ; vert) ° |
150; 110 |
100; 40 | |||||||
Central distance deviation of lumines- cence point |
<3% |
<3% | |||||||
Power consumption (max; avg)W/㎡ |
850; 280 |
850; 280 |
850; 280 |
850; 280 |
850; 280 |
850; 280 |
850; 280 |
850; 280 |
430; 142 |
Input voltage (V) |
AC100~240V (50-60Hz) |
AC100~240V (50-60Hz) | |||||||
Maintenance |
Front / Rear |
Front / Rear | |||||||
Refresh rate @60Hz |
≥3840 |
≥
7680 | |||||||
Frame rate processing (Hz) |
50&60 |
50&60 | |||||||
Operating temperature (℃) |
-30~50 |
-30~50 | |||||||
Storage temperature (℃) |
-40~60 |
-40~60 | |||||||
Operating humidity (RH) |
10~90% |
10~90% | |||||||
Storage humidity (RH) |
10~80% |
10~80% | |||||||
* More cabinet dimension are available: 1280X640, 960X960, 960X640, 640x960, 640x640.
