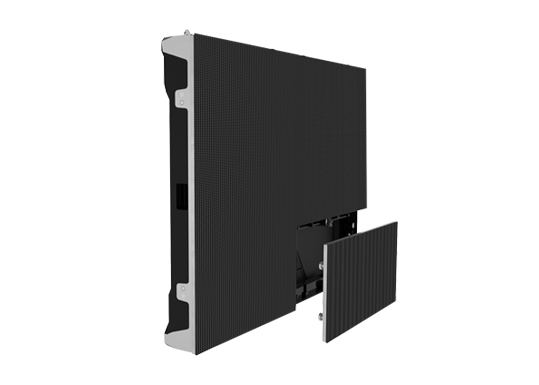

Front/ rear installation, can be completely front/ rear disassembly
High-strength aluminum alloy housing, light weight and non-deformable

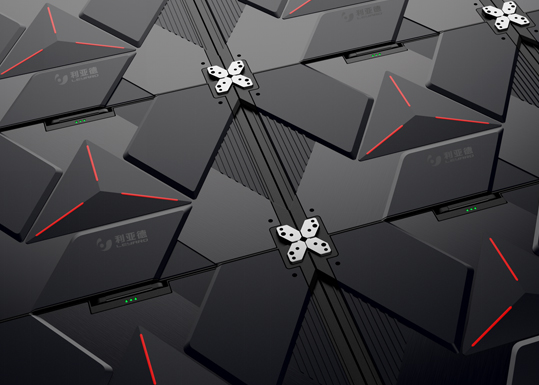

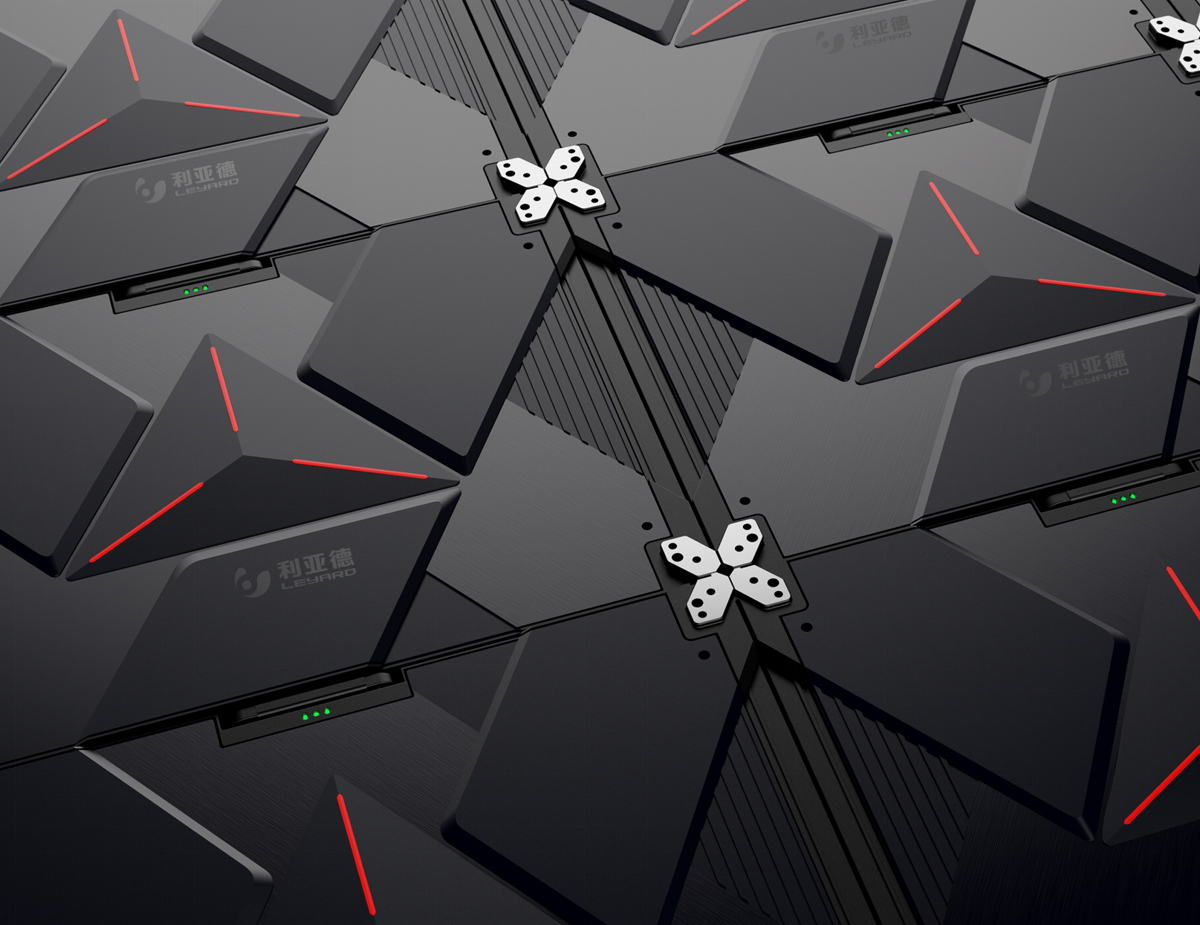

Excellent heat dissipation performance, high splicing accuracy
Magnetic installation for modules, no screws required, easy and fast maintenance, X/Y/Z 6-axis alignment
Support the loop signal backup, optional dual power supplier

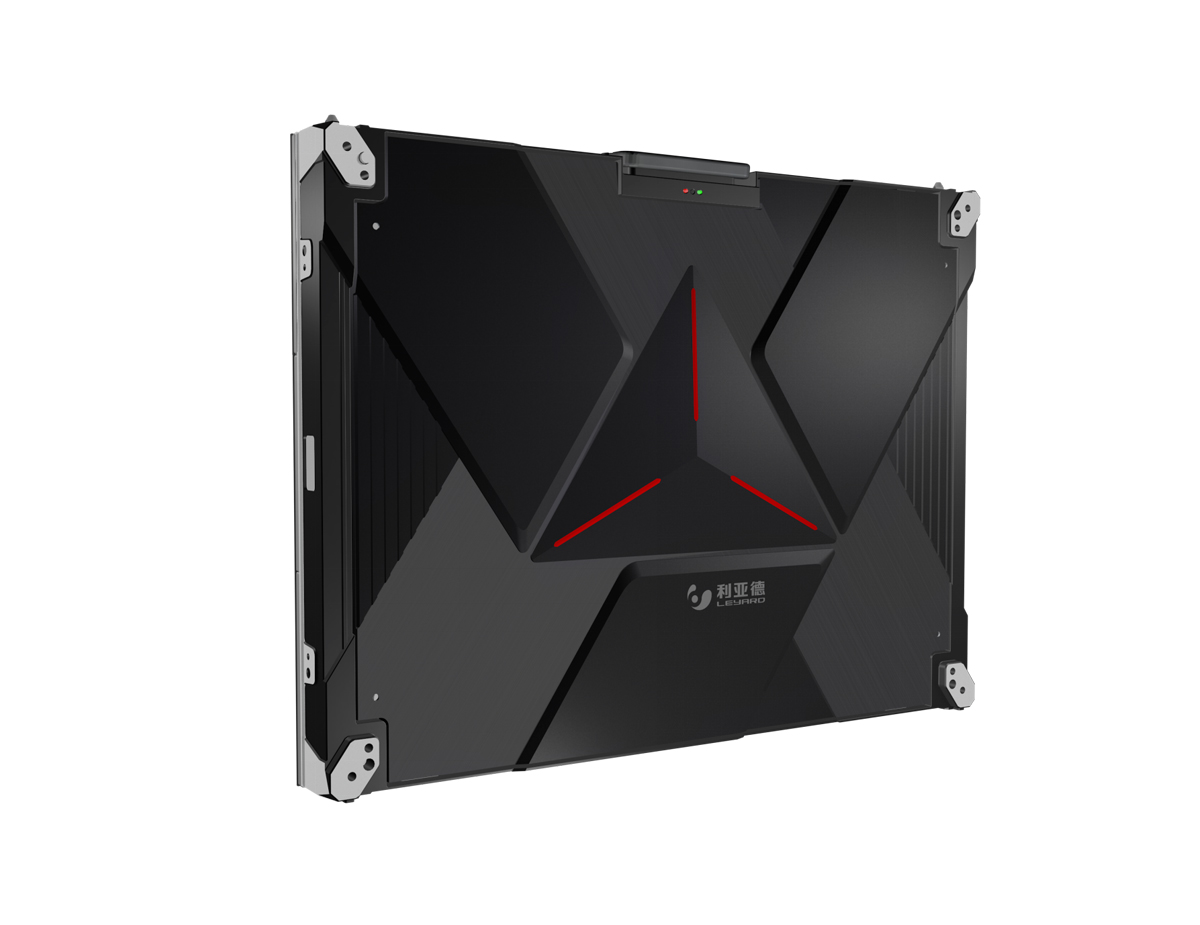

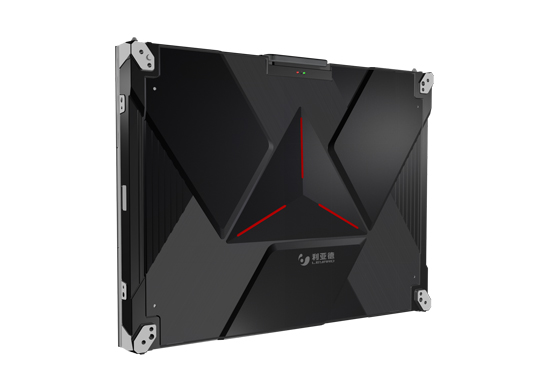

leyard Hikes series LED Cabinet
Hikes Series Specification
Item |
HKS1.5 |
HKS1.8 |
HKS2 |
HKS2.5 |
Pixel Configuration |
SMD |
SMD |
SMD |
SMD |
Pitch (mm) |
1.538 |
1.86 |
2 |
2.5 |
Module Resolution (WxH) |
208x104 |
172x86 |
160x80 |
128x64 |
Module Size (mm)(WxHxD) |
320x160 |
320x160 |
320x160 |
320x160 |
Module Weight (Kg) |
0.57±0.05 |
0.57±0.05 |
0.57±0.05 |
0.57±0.05 |
Module Composition (WxH) |
2x3 |
2x3 |
2x3 |
2x3 |
Cabinet Resolution (WxH) |
416x312 |
344x258 |
320x240 |
256x192 |
Cabinet Size (mm)(WxHxD) |
640x480x67 |
640x480x67 |
640x480x67 |
640x480x67 |
Unit Area (
㎡) |
0.3072 |
0.3072 |
0.3072 |
0.3072 |
Cabinet Weight (kg/cabinet) |
7.7±0.5 |
7.7±0.5 |
7.7±0.5 |
7.7±0.5 |
Pixel Density(pixel/㎡) |
422500 |
288906 |
250000 |
160000 |
Surface Flatness (mm) |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
Brightness (nits) |
≥450 |
≥450 |
≥450 |
≥600 |
Color Temperature (K) |
3000—
15000 Adjustable | |||
Horizontal Viewing Angle (° ) |
160 |
160 |
160 |
160 |
Vertical Viewing Angle (° ) |
140 |
140 |
140 |
140 |
Deviation of LED Luminance Center |
<3% |
<3% |
<3% |
<3% |
Brightness Uniformity |
≥97% |
≥97% |
≥97% |
≥97% |
Chromaticity Uniformity |
±0.003Cx, Cy within | |||
Max Power Consumption (W/
㎡) |
≤440 |
≤440 |
≤460 |
≤530 |
Average Power Consumption (W/
㎡) |
≤146 |
≤146 |
≤154 |
≤176 |
Power Supply |
AC:200-240V | |||
Drive Mode |
Constant Current Drive
52S |
Constant Current Drive
43S |
Constant Current Drive
40S |
Constant Current Drive
32S |
Frame Rate (Hz) |
50&60 |
50&60 |
50&60 |
50&60 |
Refresh Rate (Hz) |
≥3840 |
≥3840 |
≥3840 |
≥3840 |
Lifetime (hrs) |
100,000 |
100,000 |
100,000 |
100,000 |
Operation Temperature (℃ ) |
-10~40 |
-10~40 |
-10~40 |
-10~40 |
Storage Temperature (℃ ) |
-20~60 |
-20~60 |
-20~60 |
-20~60 |
Operation Humidity (RH) |
10~80% no condensation | |||
Storage Humidity (RH) |
10~85% no condensation | |||
