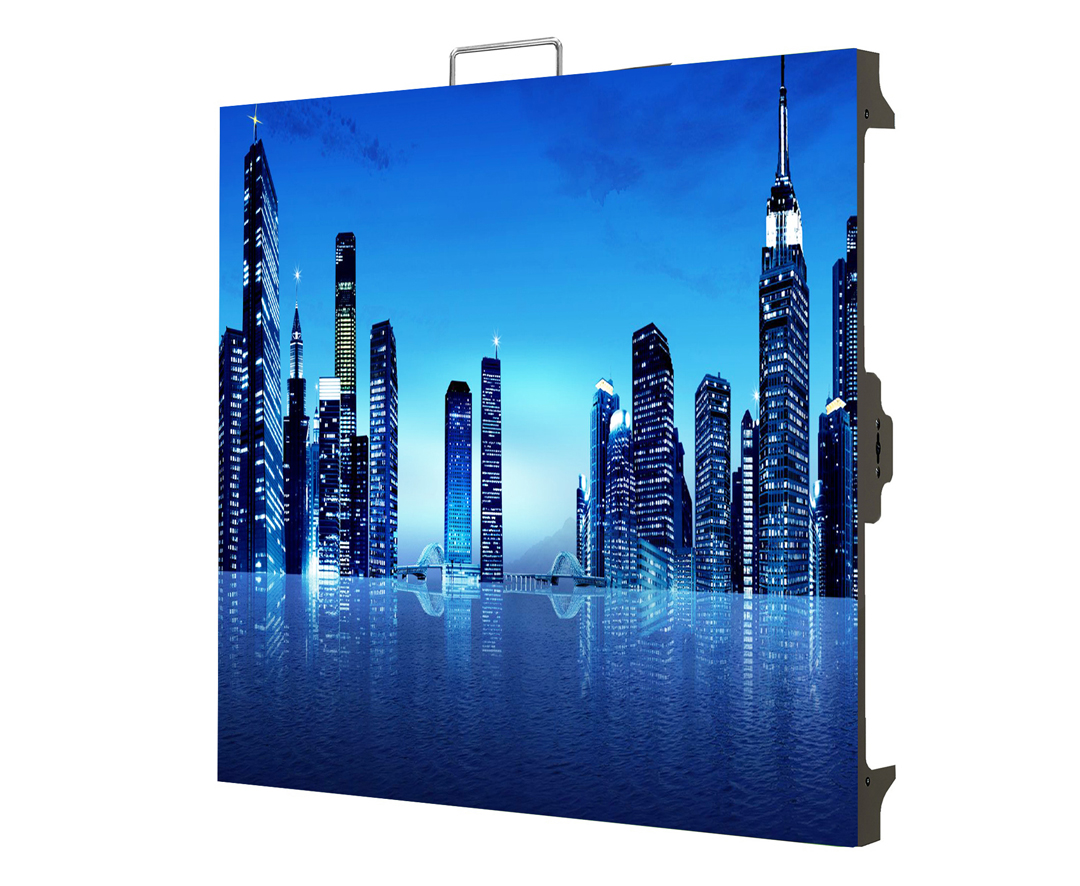

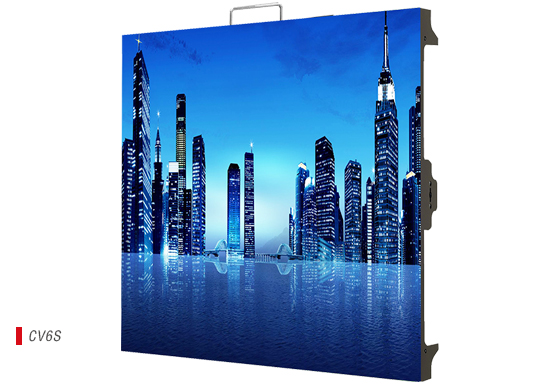

CV Fixed Outdoor LED Display
FAST AND EASY MAINTENANCE
Adopt self-locking and fast installation mechanism; fast and easy maintenance.
AUTOMATIC ALIGNMENT MECHANISM

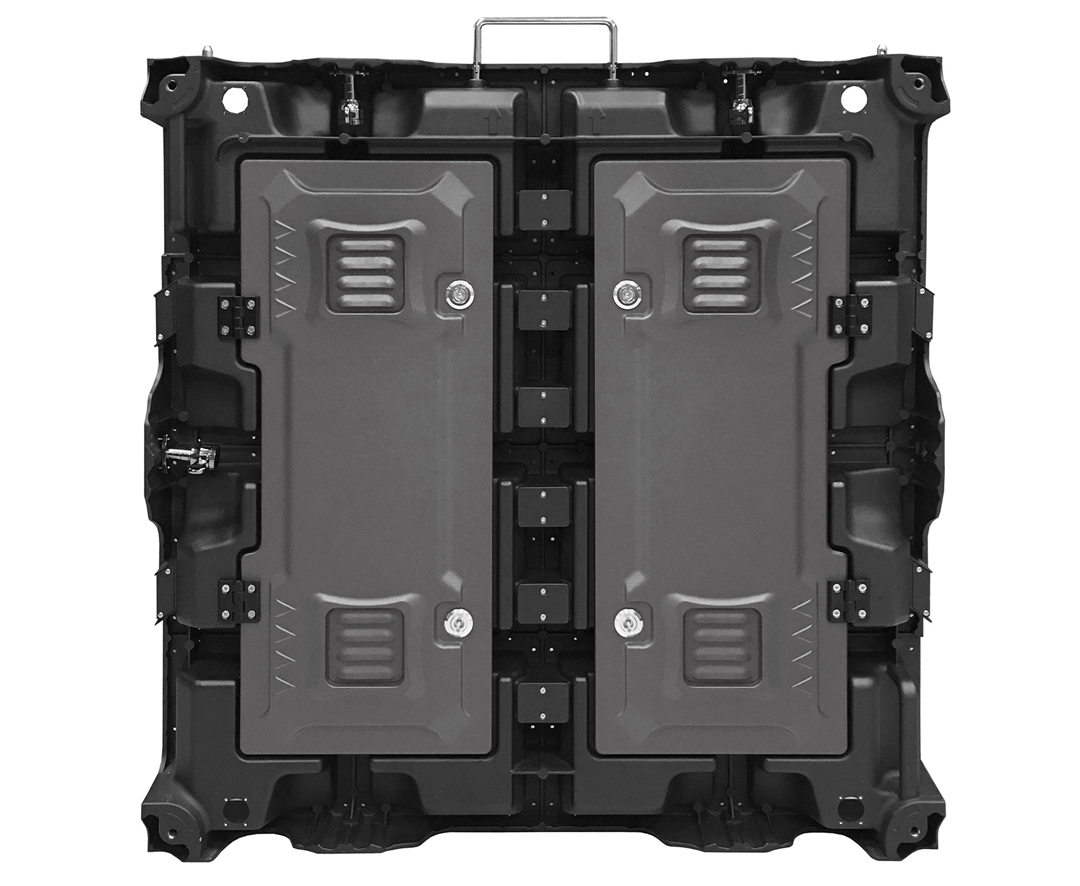

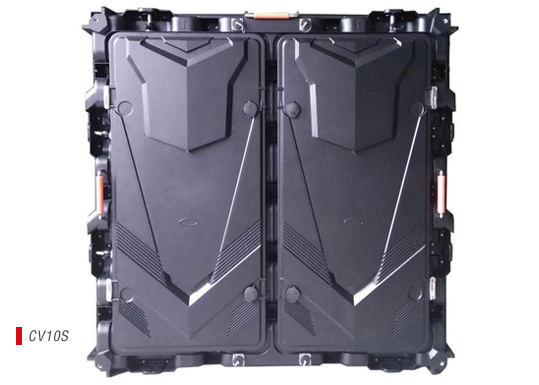

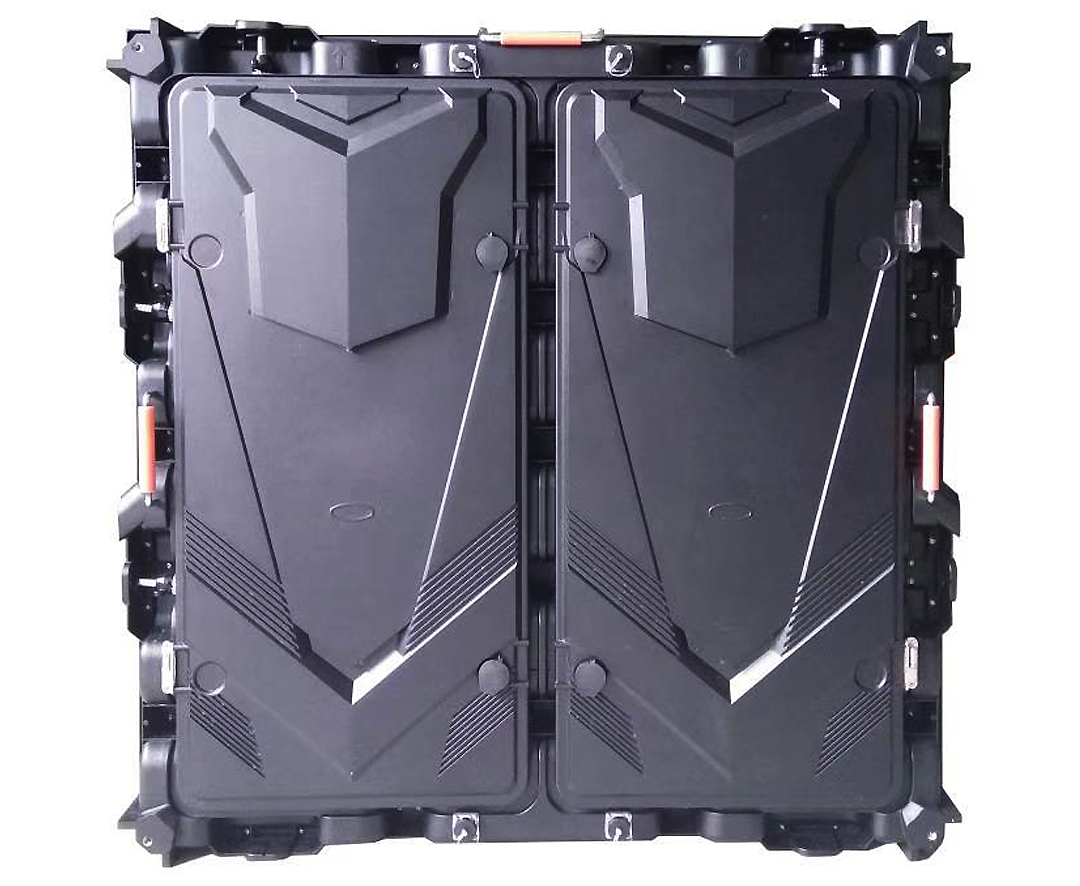

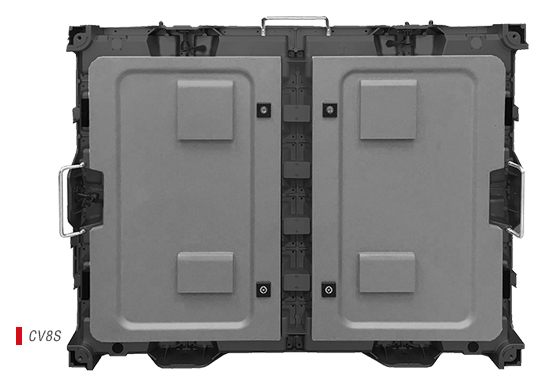

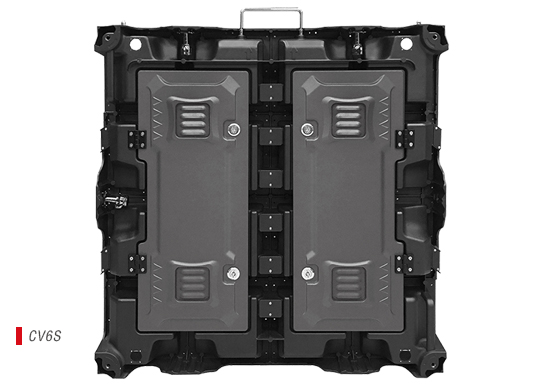

Integrated and die-casting cabinet, solid and reliable. The cabinet is equipped with fast assembly connection which can make screen disassembled fastly. Meanwhile, it is designed with automatic alignment mechanism which can realize fast installation by single person.
THIN AND LIGHTWEIGHT
＜ 40Kg/ ㎡ allows in shipping cost and installation cost.
leyard CV Series Full Color Outdoor
Product Specification
Item |
CV2.5S-18 |
CV3S-18 |
CV4S-18 |
CV5S-18 |
CV6S-18 |
CV8S-18 |
CV10S-18 | |||
Pixel Configuration |
SMD |
SMD |
SMD |
SMD |
SMD |
SMD |
SMD |
SMD |
SMD |
SMD |
Pitch (mm) |
2.5 |
3 |
4 |
4 |
5 |
6 |
5.9 |
8 |
8 |
10 |
Module Resolution (WxH) |
128x64 |
104x52 |
64x32 |
80x40 |
64x32 |
32x32 |
54x27 |
32x16 |
40x20 |
32x16 |
Module Size (mm)(WxHxD) |
320x160x17 |
320x160x18 |
256x128x18 |
320x160x18 |
320x160x18 |
192x192x18 |
320x160x18 |
256x128x18 |
320x160x18 |
320x160x18 |
Module Weight (Kg) |
0.48 |
0.48 |
0.32 |
0.46 |
0.5 |
0.32 |
0.47 |
0.28 |
0.46 |
0.49 |
Module Composition (WxH) |
3x6 |
3x6 |
2x4 |
3x6 |
3x6 |
4x4 |
3x6 |
4x6 |
3x6 |
3x6 |
Cabinet Resolution (WxH) |
384x384 |
312x312 |
128x128 |
240x240 |
192x192 |
128x128 |
162x162 |
128x96 |
120x120 |
96x96 |
Cabinet Size (mm)(WxHxD) |
960x960x103 |
960x960x104 |
512x512x80 |
960x960x104 |
960x960x104 |
768x768x96 |
960x960x104 |
1024x768x96 |
960x960x104 |
960x960x104 |
Unit Area (㎡) |
0.9216 |
0.9216 |
0.2621 |
0.9216 |
0.9216 |
0.5898 |
0.9216 |
0.7864 |
0.9216 |
0.9216 |
Cabinet Weight (kg) |
40 |
40 |
20 |
40 |
40 |
35 |
40 |
40 |
40 |
40 |
Pixel Density (pixel/㎡) |
160000 |
105625 |
62500 |
62500 |
40000 |
27778 |
28476 |
15625 |
15625 |
10000 |
Surface Flatness (mm) |
≤0.6 |
≤0.6 |
≤0.3 |
≤0.6 |
≤0.3 |
≤0.5 |
≤0.6 |
≤0.6 |
≤0.6 |
≤0.6 |
IP Grade (Front/Rear) |
IP65/IP54 |
IP65/IP54 |
IP65/IP54 |
IP65/IP54 |
IP65/IP54 |
IP65/IP54 |
IP65/IP54 |
IP65/IP54 |
IP65/IP54 |
IP65/IP54 |
Brightness (nits) |
4500-5000 |
4500-5000 |
4500-5000 |
4500-5000 |
5000-6000 |
5000-6000 |
5000-6000 |
5000-6000 |
5000-6000 |
5000-6000 |
Color Temperature (K) |
3000-10000 Adjustable | |||||||||
Horizontal Viewing Angle (° ) |
160 |
160 |
160 |
160 |
160 |
160 |
160 |
160 |
160 |
160 |
Vertical Viewing Angle (°) |
140 |
140 |
140 |
140 |
140 |
140 |
140 |
140 |
140 |
140 |
Deviation of LED Luminance Center |
＜
3% |
＜
3% |
＜
3% |
＜
3% |
＜
3% |
＜
3% |
＜
3% |
＜
3% |
＜
3% |
＜
3% |
Brightness Uniformity |
≥97% |
≥97% |
≥97% |
≥97% |
≥97% |
≥97% |
≥97% |
≥97% |
≥97% |
≥97% |
Chromaticity Uniformity |
±0.003Cx,Cy within | |||||||||
Max Power Consumption (W/㎡) |
770 |
712 |
850 |
861 |
750 |
800 |
694 |
800 |
809 |
800 |
Average Power Consumption (W/㎡) |
257 |
237 |
285 |
287 |
250 |
267 |
231 |
265 |
270 |
265 |
Power Supply |
AC100~240V (50/60Hz) | |||||||||
Drive Mode |
Constant Current Drive | |||||||||
Frame Rate (Hz) |
50&60 |
50&60 |
50&60 |
50&60 |
50&60 |
50&60 |
50&60 |
50&60 |
50&60 |
50&60 |
Refresh Rate (Hz) |
≥3840/≥1920 |
≥3840/≥1920 |
≥3840/≥1920 |
≥3840/≥1920 |
≥3840/≥1920 |
≥3840/≥1920 |
≥3840/≥1920 |
≥3840/≥1920 |
≥3840/≥1920 |
≥3840/≥1920 |
Lifetime (hrs) |
100,000 |
100,000 |
100,000 |
100,000 |
100,000 |
100,000 |
100,000 |
100,000 |
100,000 |
100,000 |
Operation Temperature (℃) |
-20~40 |
-20~40 |
-20~40 |
-20~40 |
-20~40 |
-20~40 |
-20~40 |
-20~40 |
-20~40 |
-20~40 |
Storage Temperature (℃) |
-30~60 |
-30~60 |
-30~60 |
-30~60 |
-30~60 |
-30~60 |
-30~60 |
-30~60 |
-30~60 |
-30~60 |
Operation Humidity (RH) |
10~80% no condensation | |||||||||
Storage Humidity (RH) |
10~85% no condensation | |||||||||
